Ysgol Trimsaran

Homes / Units1767 sqm
Completed2017
ArchitectArchitype

The project

Project overview

YSGOL TRIMSARAN is a Cygnum offsite timber-frame project. The scheme comprises 1767 sqm and was completed in 2017. The project architect was Architype. Key design features include Taking inspiration from the Welsh hillside location, the multi-level scheme nestles comfortably into the steep site with materials. Cygnum’s timber-frame solution includes Platform construction. Roof systems comprised of closed panels ranging in depth from 350 to 400mm deep ‘I’ beams.

01

Challenge

Design Features

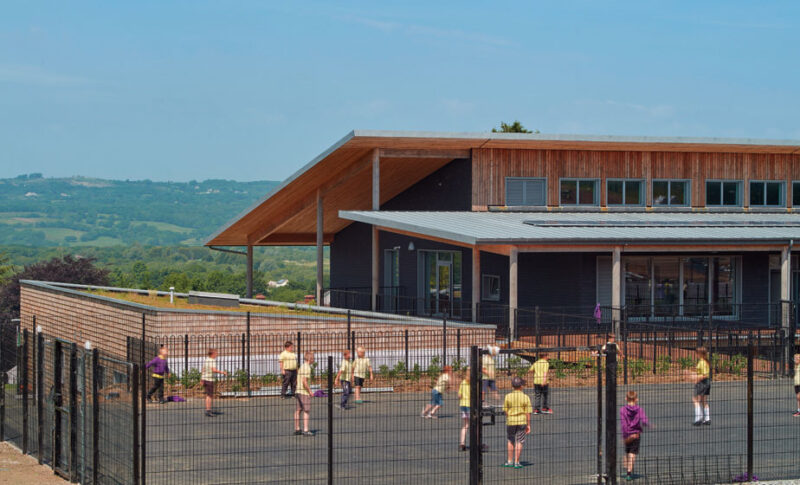

  • Taking inspiration from the Welsh hillside location, the multi-level scheme nestles comfortably into the steep site with materials that reflect the areas heritage and landscape.
  • A natural palette of materials creates a subtle and elegant aesthetic..
  • Elevations have been finished in a mix of slate tiles to reflect the areas heritage in slate production, paired with Welsh larch and a sedum roof in support of the local supply chain and low carbon credentials. The timber structure is domestically grown Welsh timber frame.
02

Solution

Timber Frame Features

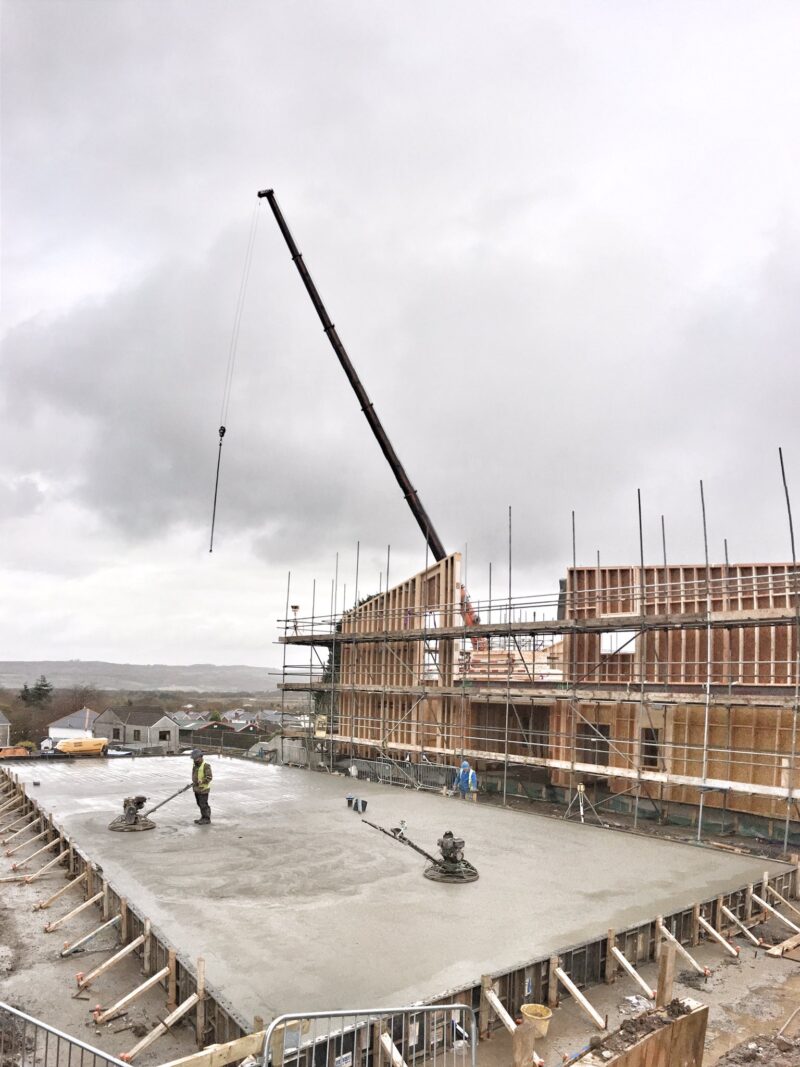

  • Platform construction.
  • Roof systems comprised of closed panels ranging in depth from 350 to 400mm deep ‘I’ beams filled with ‘upcycled’ cellulose insulation, U-value 0.09 – 0.011W/m2K.

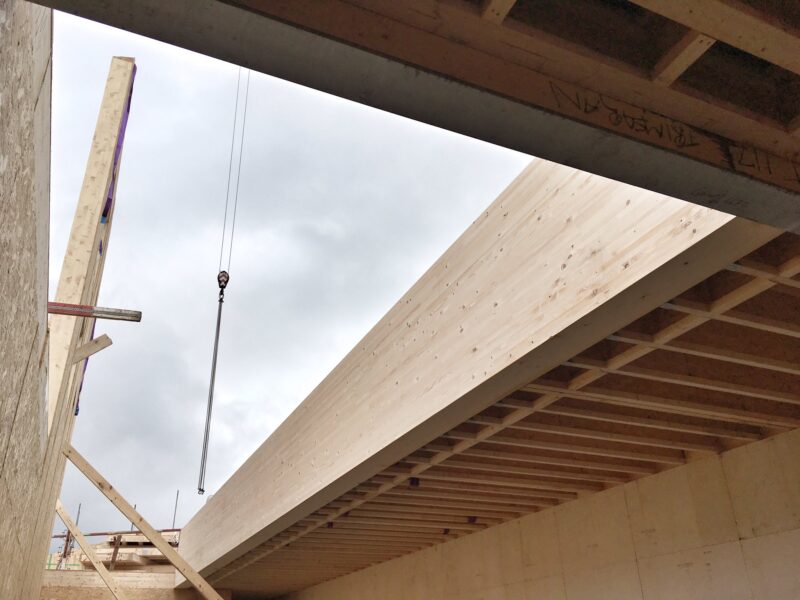

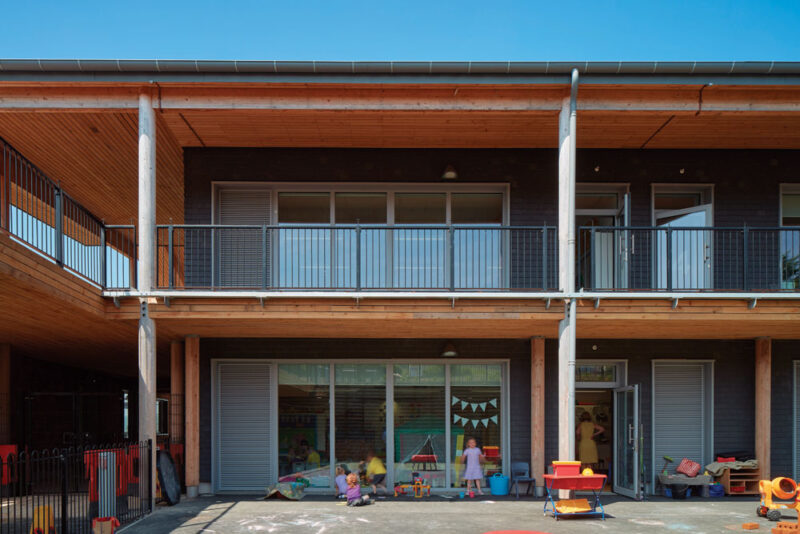

  • Structurally the large roof overhang roof was supported externally by a bespoke exposed glulam post and beam system. All connections were CNC processed offsite for effortless assembly onsite.
  • The external timber frame wall system ranged from 350mm to 450mm in thickness and was constructed with timber native to the school’s local area. They were manufactured and assembled in a Larsen truss method to minimise timber content and improve overall thermal performance. The wall void is filled with ‘upcycled’ cellulose insulation, U- value 0.10 – 0.14W/m2k.
  • Airtightness achieved (at 50 Pascals): 0.48 air changes per hour.
